• High Definition 8.4-inch 2.4 TFT-MegaPixel screen with 1024 x 768 resolution
• Over 16.7 million colors
• V-Mount battery adapter included
• 100% digital processing
• High resolution scaling of all images
• CRT-style viewing radius - 170° in all directions provides superior visibility when the viewer is not directly in front of the screen
• 400 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
• 400:1 ratio of contrast
• Pixel-to-Pixel native resolution scaling
• Extended Temperature Rating
• Blue Gun for color adjustment
• Zoom function
• Direct access for all adjustments
• Standard inputs:
                         • HDSDI (all formats)
                         • SDI (ITU-R BT601 format)
                         • Composite Video PAL/NTSC
                         • S-Video (Y/C)
                         • HDSDI (all formats)
                         • SDI (ITU-R BT601 format)
                         • Composite Video PAL/NTSC
                         • S-Video (Y/C)

• Works with all SMPTE/ITU analog and serial digital production formats and frame rates
• Easy-to-see three color tally indicators
• Built-in Color Bars
• Adjustment Settings Memory
• Calibrated Color Temperature and Gamma
• Durable Metal Enclosure
• Includes ¼-20 mounting plate that can be attached to any edge of the enclosure, (additional mounting plates available)
• Includes universal voltage Class-2 power supply
• Optional Rack Mount Kit/ Desktop Stand available

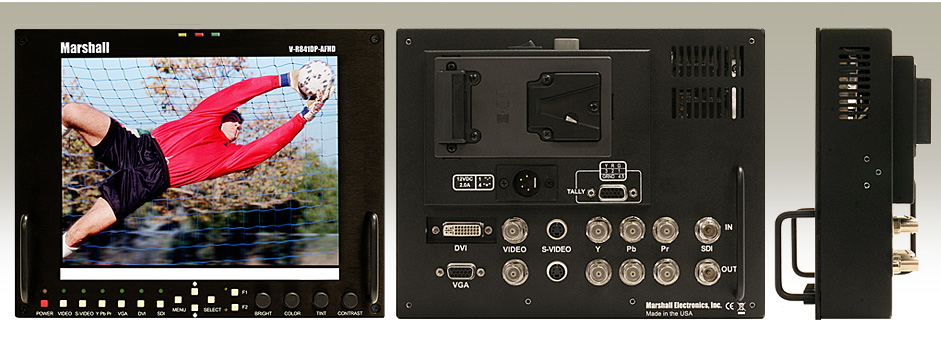

The V-R841DP-AFHD is an 8.4" high definition LCD monitor featuring our completely digital TFT-MegaPixel active matrix platform. Weighing only 3.4 pounds, this monitor is ideal as a lightweight, high-resolution viewfinder or focus-assist monitor. The V-R841DP-AFHD can also be rack-mounted with an optional 4RU adapter or used in a desktop configuration using an optional desktop stand. Emulation of SMPTE-C/EBU color and adjustable color temperature enable the most precise color representation possible. Our proprietary digital signal processing features 10-bit A/D conversion of all analog signals, with 4x oversampling and 5-line super-adaptive 2D comb filtering of composite signals. De-interlacing is performed using advanced algorithms with motion adaptive interpolation. Multi-format compatibility accommodates virtually all video formats including NTSC/PAL, 480i/p, 720p, and 1080i/p standards. VGA and DVI inputs accept VESA standards, allowing the display to be used as a computer monitor. Advanced features include aspect ratio settings, a variety of screen markers, underscan mode, blue-only mode, monochrome, H/V delay, and Pixel-to-Pixel mode.
